OUR PRODUCTS

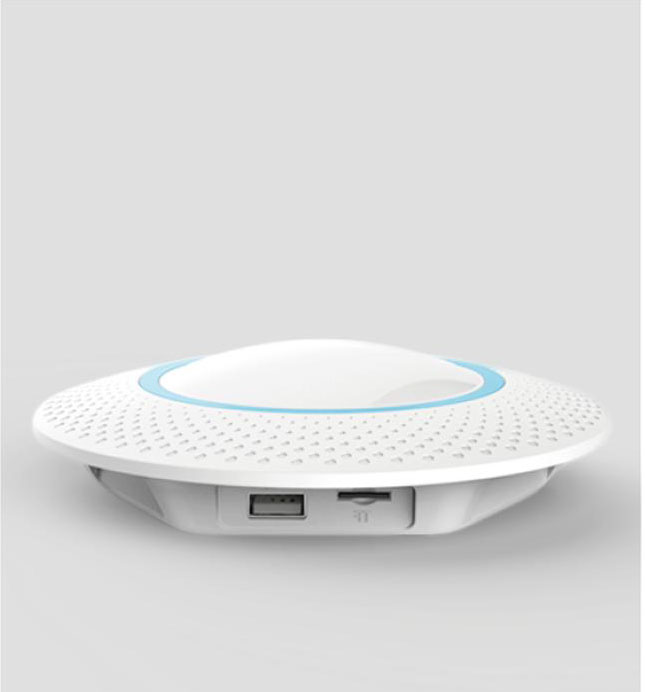

Cairos G1 (BLE & Wi-Fi Gateway)
| Specifications | |
|---|---|
| Model Number: | Cairos G1 (BLE & Wi-Fi Gateway) |
| Bluetooth version: | Bluetooth 5.0 |
| Protocol: | MQTT/HTTP/mBed |
| Communicatoin: | Wi-Fi/Ethernet/Celluler |
| Power Supply: | Adaptor/PoE |
| Transmission range: | 300M |
| Upgrade Way: | Over the Air |
| Features: | LED Strips light indicating first read and monitor BLE devices |

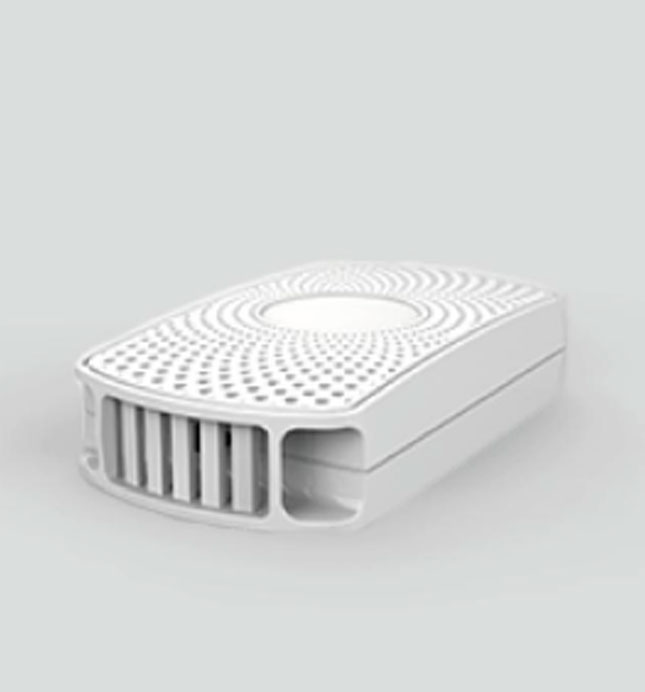

Cairos S1
| Specifications | |
|---|---|
| Model Number: | Cairos S1 |
| Chipset: | Nordic nRF52832 |
| Battery type: | 2*AAA ,replaceable |
| Battery lifetime: | 3 years |
| Transmission range: | 100M |
| Size: | 70.6*38*17.8mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Communicatoin: | Wi-Fi/Ethernet/Celluler |
| Features: | High sensitivity of detecting temperature and humidity sensor inside temperature measurement(-40-70 C) |
Cairos E6
| Specifications | |
|---|---|
| Model Number: | Cairos E6 |
| Chipset: | Nordic nRF52832 |
| Battery type: | CR2032 ,non-replaceable |
| Battery lifetime: | 5 years |
| Transmission range: | 100M |
| Size: | 42.5*23.5*5mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Communicatoin: | Wi-Fi/Ethernet/Celluler |
| Features: | Ultrathin & small size light sensor inside used for asset tracking |
Cairos S1
| Specifications | |
|---|---|
| Model Number: | Cairos E6 |
| Chipset: | Nordic nRF52832 |
| Battery type: | CR2032 ,non-replaceable |
| Battery lifetime: | 5 years |
| Transmission range: | 100M |
| Size: | 42.5*23.5*5mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Communicatoin: | Wi-Fi/Ethernet/Celluler |
| Features: | Ultrathin & small size light sensor inside used for asset tracking |
Cairos E8
| Specifications | |
|---|---|
| Model Number: | Cairos E8 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2032 ,replaceable |
| Battery lifetime: | 8-12 months |
| Transmission range: | 90M |
| Size: | 36.5*23.7*5mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Ultrathin Accelerometer sensor inside Key Ring whole style |
Cairos i7
| Specifications | |
|---|---|
| Model Number: | Cairos i7 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2477 ,replaceable |
| Battery lifetime: | 2years |
| Transmission range: | 100M |
| Size: | 50*15mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | External ON/OFF Button Accelerometer sensor inside |
Cairos i3
| Specifications | |
|---|---|
| Model Number: | Cairos i3 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | 2*AAA ,replaceable |
| Battery lifetime: | 5 years |
| Transmission range: | 200M |
| Size: | 72*45*22mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Waterproof IP67 Long Battery Lifetime Used for indoor location |
Cairos i4
| Specifications | |
|---|---|
| Model Number: | Cairos i4 |
| Chipset: | Nordic nRF51822 |
| Battery type: | CR2477 ,replaceable |
| Battery lifetime: | 1.5 years |
| Transmission range: | 100M |
| Size: | 36*16mm |
| Firmware: | Standard iBeacon |
| Features: | Mini Size ON/OFF Button inside |
Cairos i6
| Specifications | |
|---|---|
| Model Number: | Cairos i6 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2016,replaceable |
| Battery lifetime: | 3-6months |
| Transmission range: | 50M |
| Size: | 32*23*3.3mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Slim Sticker Used for Events only |
Cairos i8
| Specifications | |
|---|---|
| Model Number: | Cairos i8 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2477 ,replaceable |
| Battery lifetime: | 1.5 years |
| Transmission range: | 100M |
| Size: | 43*43*21mm |
| Firmware: | Standard iBeacon |
| Features: | Silicon rubber casing Casing customized |
Cairos i9
| Specifications | |
|---|---|
| Model Number: | Cairos i9 |
| Chipset: | Nordic nRF51822 |
| Battery type: | CR2016,replaceable |
| Battery lifetime: | 3-6 months |
| Transmission range: | 50M |
| Size: | 26*5mm |
| Firmware: | Standard iBeacon |
| Features: | Small coin size Logo Printed |

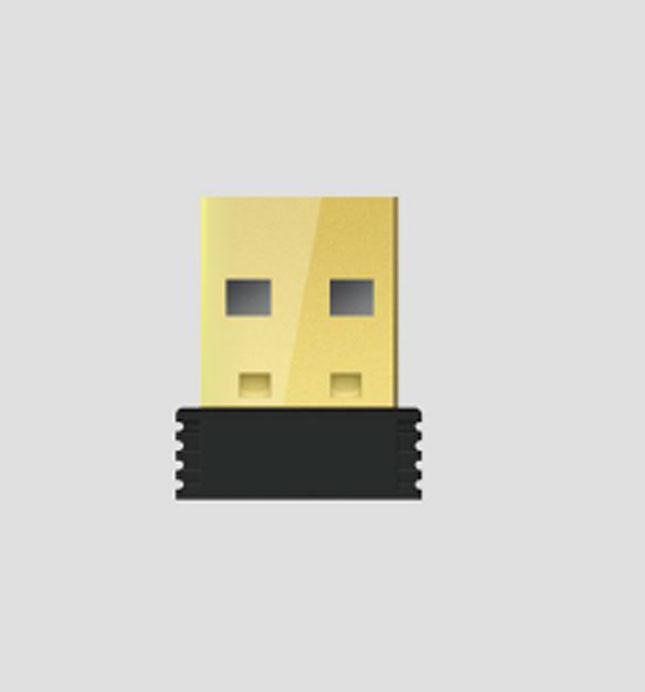

Cairos C3
| Specifications | |
|---|---|
| Model Number: | Cairos C3 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Powe Type: | USB Slot 5V |
| Transmission range: | 50M |
| Size: | 20*12*8mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Mini size UART Available |
Cairos C6
| Specifications | |
|---|---|
| Model Number: | Cairos C6 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2032,replaceable |
| Battery lifetime: | 8-12 months |
| Transmission range: | 50M |
| Size: | 36*16mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Wearable style Neckstring & Keychain included |
Cairos C7
| Specifications | |
|---|---|
| Model Number: | Cairos C7 |
| Chipset: | Nordic nRF52832 |
| Battery type: | Lithium Battery,non-replaceable |
| Battery lifetime: | 3 years |
| Transmission range: | 100M |
| Size: | 85*55*5mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Card Shape Press Button |
Cairos D15N
| Specifications | |
|---|---|
| Model Number: | Cairos D15N |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2025 ,replaceable |
| Battery lifetime: | 6-12 months |
| Transmission range: | 90M |
| Size: | 35*8.2mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Fashion Design Hidden ON/OFF press button |
Cairos E2
| Specifications | |
|---|---|
| Model Number: | Cairos E2 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | 4*AA, replaceable |
| Battery lifetime: | 10 years |
| Transmission range: | 300M |
| Size: | 72*72*18mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Long broadcasting range Long Battery Lifetime Strong Signal (PA available) |
Cairos E5
| Specifications | |
|---|---|
| Model Number: | Cairos E5 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | 2*ER14250, replaceable |
| Battery lifetime: | 5 years |
| Transmission range: | 150M |
| Size: | 05O*2Omm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Navigation helpere Long Battery Lifetime |

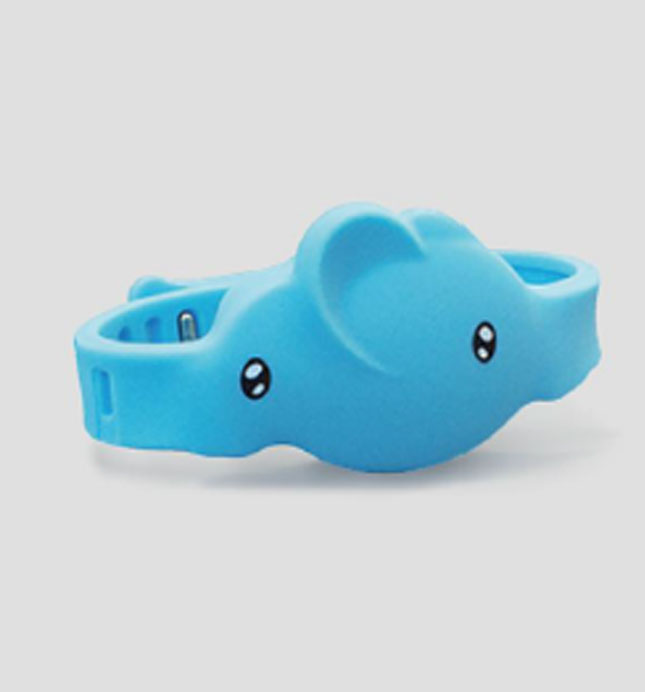

Cairos B4
| Specifications | |
|---|---|
| Model Number: | Cairos B4 |
| Chipset: | Nordic nRF51822 |
| Battery type: | CR2016, non-replaceable |
| Battery lifetime: | 3-6months |
| Transmission range: | 30M |
| Size: | 201*32.4*11.5mm |
| Firmware: | Standard iBeacon |
| Features: | Kids Anti-lost tracker Casing Customized |
Cairos i1
| Specifications | |
|---|---|
| Model Number: | Cairos i1 |
| Chipset: | Nordic nRF51922 |
| Battery type: | CR2477,replaceable |
| Battery lifetime: | 1.5years |
| Transmission range: | 100M |
| Size: | 61*39*15mm |
| Firmware: | Standard iBeacon |
| Features: | Waterproof IP67 External ON/OFF Button |
Cairos F3
| Specifications | |
|---|---|
| Model Number: | Cairos F3 |
| Chipset: | Nordic nRF51822 |
| Battery type: | CR2025,replaceable |
| Battery lifetime: | 3-5 months |
| Transmission range: | 30M |
| Size: | 37*37*6.2mm |
| Features: | Bluetooth tracker Two ways finding Remote shutter function LED Indicator and buzzer |
Cairos F4
| Specifications | |
|---|---|
| Model Number: | Cairos F4 |
| Chipset: | Nordic nRF51822 |
| Battery type: | CR2032,replaceable |
| Battery lifetime: | 3-6 months |
| Transmission range: | 30M |
| Size: | 37*37*5.8mm |
| Features: | Bluetooth tracker Two ways finding Remote shutter function LED Indicator and buzzer |

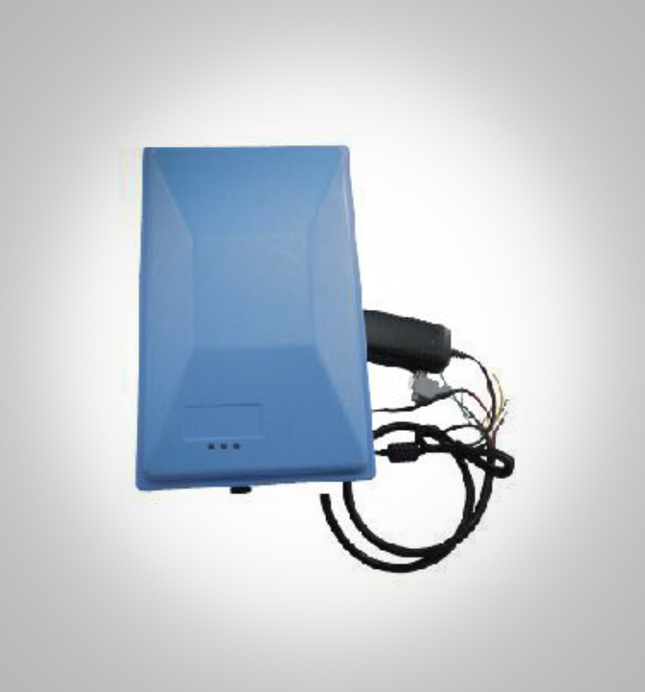

Cairos MR3104
Introduction
MR3104 directional reader,adopt with high performance RF send and receive chip,with high reading speed,multi interface,high stable performance.This reader with built in antenna,apply in vehicle management,time attendance application Read More
- IP grade design,water proof and thunder proof
- Multi data interface,apply in different application
- Strong recieve sensitivity,outdoor max,reading distance upto 100m
| Specifications | |
|---|---|
| Model Number: | Cairos MR3104 |
| Item | Parameter |
| Physical Property: | |
| Material | Aluminum, PVC |
| Dimension | 315*195*68mm |
| Weight | 1700g |
| Installation | Wall Mount Type |
| 2.4G RF Property Read More | |
| Reading | Directional |
|---|---|
| Signal Modulation Type | GFSK |
| Communication Speed | 1Mbit/s |
| Working Frequency | 2440MHz |
| Max receive sensitivity | -85dbm |
| Antenna gain | 14dbi |
| Communication | |
| RS232 Baudrate: | 115200bps |
| RS485 Baudrate: | 19200bps |
| Ethernet (RG45) | 10/100M self-adaption |
| Output port | Wiegand26/34 |
| Input port | Configurable as trigger reading event,default dangling status is high level |
| Power Property | |
| Working current | 120mA |
| Working voltage | 9V DC |
