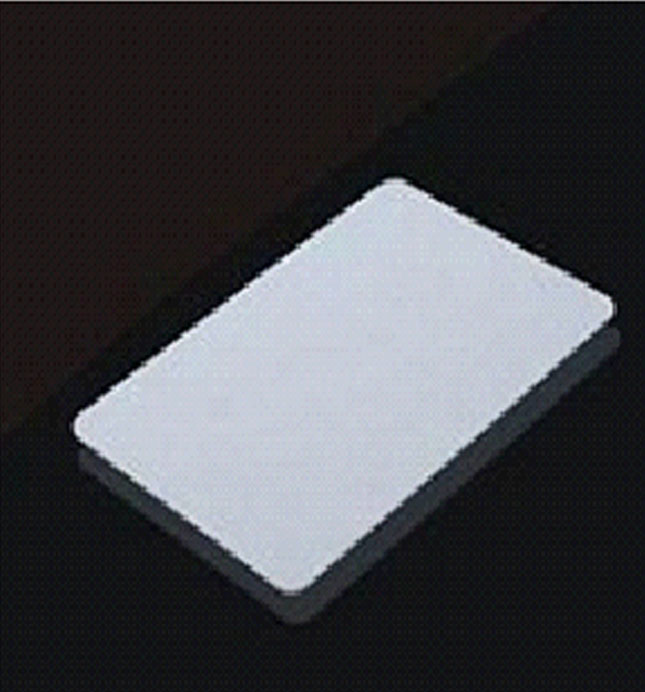

RFID TAGS
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 85.5x54x1.0mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Aline H3 |
| Storage Capacity | EPC 64 bytes, User memory 512bits |
| Working temperature | '-40℃ ~ 70℃ |
| Material | PVC |
| Reading Range | 15m(with JT-8290), 5m(with JT-8280) |
| Life | 100,000 times, 10 years |
Application
access control and identifiaction / Inventory management / Industrial management / process control / process control system / logistic system

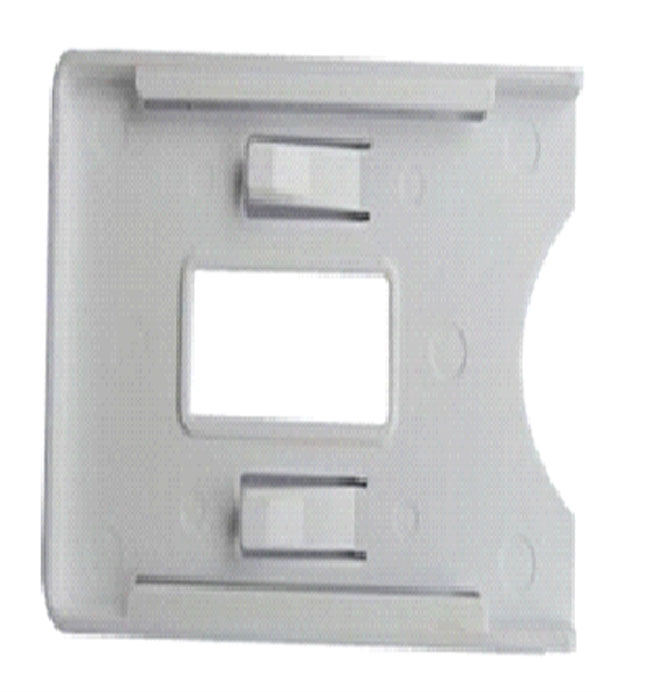

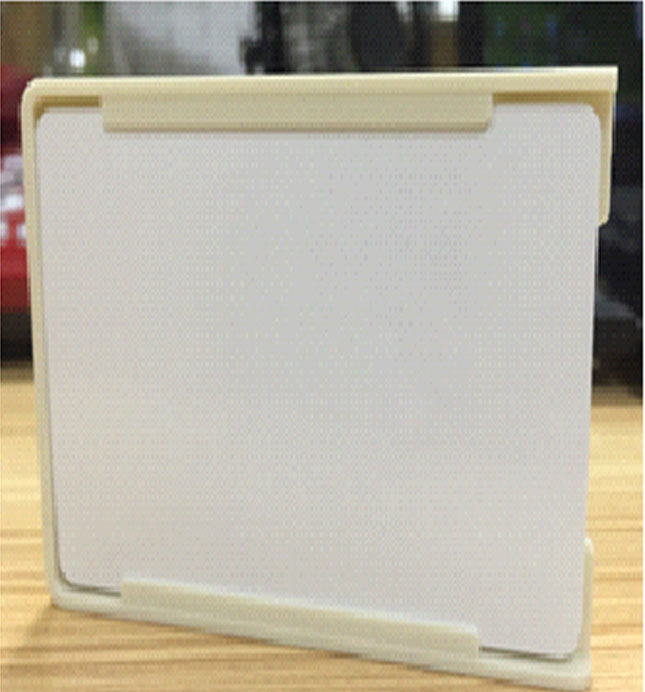

| Specifications | |
|---|---|
| Dimensions(mm) | 60 x 90x5mm |
| Weight | 10g |
| Material | ABS with 3M glue adhesive |
| Temperature | No deformation under 100 degree,Celcius |
| Printing | Printable with silkscreen (no more than 2 colors) |
| A customized logo can be printed on the tag | |
| Compliance | ISO 18000-6B or EPC Gen2 |
| Type | Contactless Read & Write |
| Main application | This product can hold RFID tags,attached to target objects,more convenient for card reading,easy for dismantle,effectivelyavoid the data loss. |
Application
Intelligent traffic such as ETC;/Customs border-crossing, parking lot, automatic weighting;/Logistics such as container management, pallet management, asset management etc;/Ticketing& access control ;/Pharmaceuticals such as medical waste management ,etc.
Introduction
SLE5542, It is waterproof, can work under high temperature.
| Specifications | |
|---|---|
| Working Frequency | 860 MHz ~ 960 MHz |
| Support protocol | ISO18000-6C |
| Capacity | 512bit or 96 bits (bits 2 K) |
| Working temperature | -40 ° C ~ +70 ° C (can be customized) |
| Data storage | 10 years, ems-memory can be wiped and written |
| Read Range | 15 m (with jt-8290), 5 m (from jt-8280) |
| Dimensions | 85.5X54 x1.0±0.2mm |
| Material | PVC laminated cards / hard plastic tag |
| Printable | Yes Read More |
| Features: | Ultrathin & small size light sensor inside used for asset tracking |
|---|
Application
Access Control and identifiaction;/inventory management;/industrial Management; / process control management/logistics system
Introduction
Compact design provides performance of "Squiggle" level. Provide good comprehensive performance for small-sized objects applications, the best choice for clothing tag, box tag, pallet tag and ISO card.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 74x19mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Aline H3 |
| Storage Capacity | EPC 96bits, User memory 512bits |
| Working temperature | '-40℃ ~ 70℃ |
| Material | PVC |
| Reading Range | 15m(with JT-8290), 5m(with JT-8280) |
| Life | 100,000 times, 10 years |
Application
Asset management, replace the barcode labels
Introduction
Compact design provides performance of "Squiggle" level. Provide good comprehensive performance for small-sized objects applications, the best choice for clothing tag, library management,warehouse management.

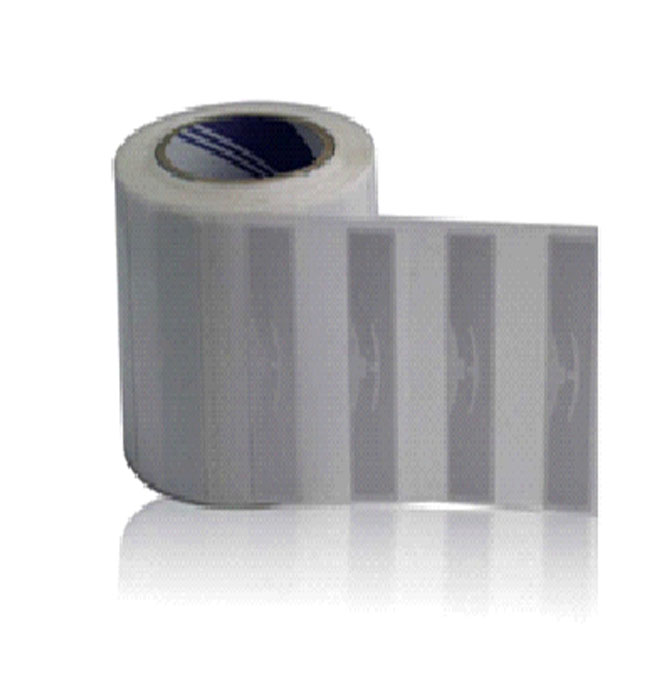

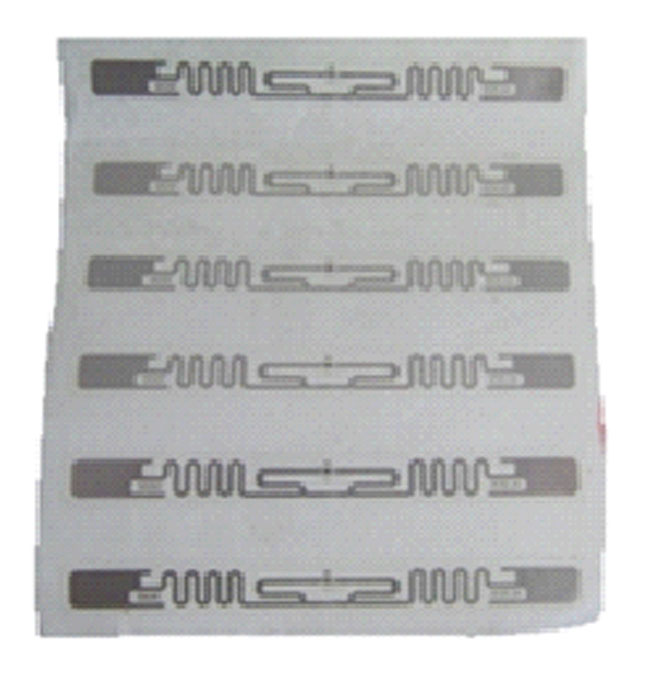

| Specifications | |
|---|---|
| Protocol: | ISO18000-6C Gen2 |
| Chip: | Alien/Higgs 3 |
| Frequency range: | 860MHz ~ 960MHz |
| Operating mode: | Passive |
| Storage data: | EPC12 bytes; User 64 bytes |
| Dimension: | (L) 98*(W)18mm |
| Tag Area: | EPC, User, Reserve, TID |
| Working temperature: | -20℃ ~ 80℃ |
| Operation mode: | FHSS Read More |
| Life: | 100,000 times, 10 years |
|---|---|
| Antenna Material: | Aluminum Etching |
Application
Garments management,library management,warehouse management.
Introduction
Compact design provides performance of "Squiggle" level. Provide good comprehensive performance for small-sized objects applications, the best choice for clothing tag, library management,warehouse management.
| Specifications | |
|---|---|
| Protocol: | ISO18000-6C Gen2 |
| Chip: | Alien/Higgs 3 |
| Frequency range: | 860MHz ~ 960MHz |
| Operating mode: | Passive |
| Storage data: | EPC 128 bit; User 512 bit |
| Dimension: | 96.5*23mm |
| Reading Range: | With JT-8290A: 15m; With JT-8280A 5m |
| Working temperature: | -20℃ ~ 50℃ |
| Operation mode: | FHSS Read More |
| Life: | 100,000 times, 10 years |
|---|---|
| Antenna Material: | Aluminum Etching |
Application
Garments management,library management,warehouse management.
Introduction
Compact design provides performance of "Squiggle" level. Provide good comprehensive performance for small-sized objects applications, the best choice for clothing tag, library management,warehouse management.
| Specifications | |
|---|---|
| Protocol: | ISO18000-6C Gen2 |
| Chip: | Alien/Higgs 3 |
| Frequency range: | 860MHz ~ 960MHz |
| Operating mode: | Passive |
| Storage data: | EPC 128 bit; User 512 bit |
| Dimension: | 97*23mm |
| Reading Range: | With JT-8290A: 15m; With JT-8280A 5m |
| Working temperature: | -20℃ ~ 50℃ |
| Operation mode: | FHSS Read More |
| Life: | 100,000 times, 10 years |
|---|---|
| Antenna Material: | PET+Aluminum Etching |
| Outer Material: | Copper paper/PET |
Application
Garments management,library management,warehouse management.
Introduction
Compact design provides performance of "Squiggle" level. Provide good comprehensive performance for small-sized objects applications, the best choice for clothing tag, box tag, pallet tag and ISO card.

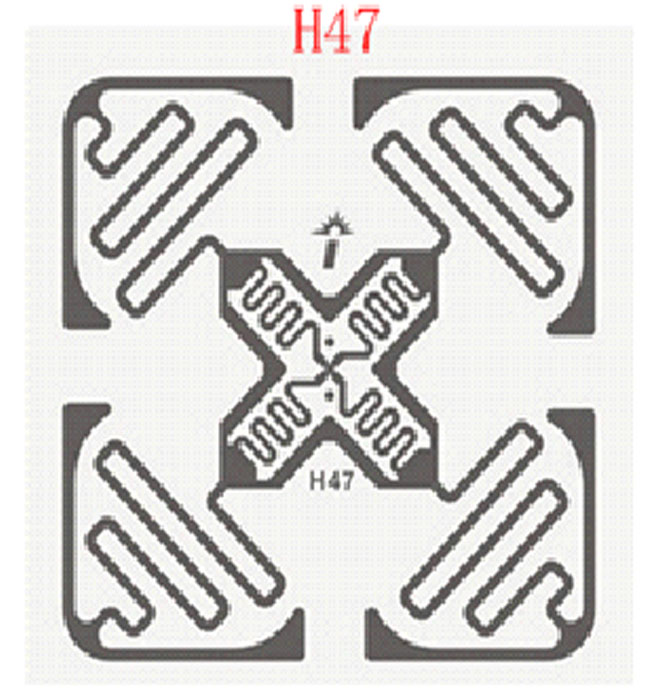

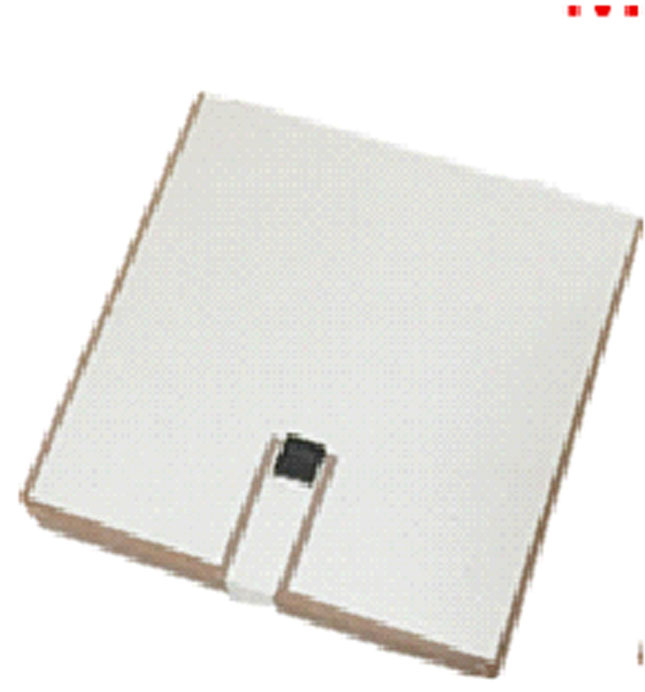

| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 44x44mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Impinj Monza 4 |
| Storage Capacity | EPC128/496/128bits, TID 48/48/48Bits,User memory 32/128/512bits,password 32/32bits |
| Antenna | AL 9um |
| Material | PET |
| Working mode | Passive |
| Life | 100,000 times, 10 years Read More |
| ESD | 2000V |
|---|
Application
It is widely use in garments management, asset management,logistics management, and retailer store management.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 74*24mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Aline H3 |
| Storage Capacity | EPC 96bits, User memory 512bits |
| Working mode | Passive |
| Reading Range | 15m(with JT-8290), 5m(with JT-8280) |
| Life | 100,000 times, 10 years |
| Adhesive | Yes Read More |
| Printable | Yes |
|---|
Application
Intelligent traffic such as ETC;/ Customs border-crossing, parking lot, automatic weighting;/Logistics such as container management, pallet management, asset management etc;/Ticketing& access control ;/Pharmaceuticals such as medical waste management ,etc.

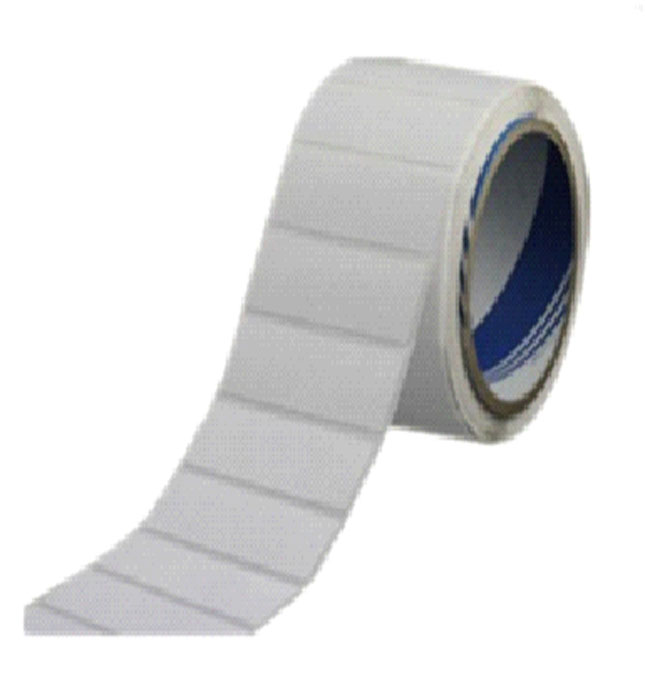

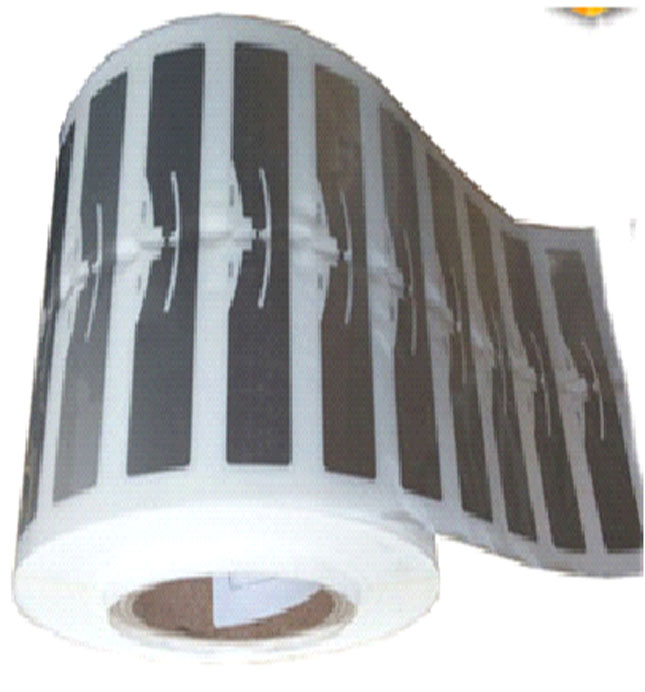

| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Protocol | ISO 18000-6C(GEN 2) |
| Dimension | 99*7mm=3.9*0.28inch(Customized Design) |
| Inlay Material: | PET+AL |
| Outer Material: | PET/Paper |
| Chip | Alien H3/Alien H4 |
| Memory Size: | Up to 512bit |
| Working mode | Passive Read More |
| Operating Mode | R/W |
|---|---|
| Life | 100,000 times, 10 years |
| Adhesive | Yes |
| Operating Temp: | -20~+50Celsius |
| Storage Temp: | -40~+100Celsius |
| Package: | 2000pcs/roll(Customized design) |
Application
It is widely usded for library management, document management, etc
| Specifications | |
|---|---|
| Model Number: | Cairos i6 |
| Chipset: | Nordic nRF51822/nRF52832 |
| Battery type: | CR2016,replaceable |
| Battery lifetime: | 3-6months |
| Transmission range: | 50M |
| Size: | 32*23*3.3mm |
| Firmware: | MiniBeacon Plus(iBeacon + Eddystone) |
| Features: | Slim Sticker Used for Events only |
Application
Car parking system, high speed ETC, warehouse, logistics, asset management and so on.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 110x40x0.3mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Alien Higgs-3 |
| Storage Capacity | EPC12 bytes; User 64 bytes |
| Working temperature | -20℃ ~ 80℃ |
| Working mode | Read/write |
| Antenna Material | Aluminum Etching Read More |
| Reading Range | With JT-8290A: 15m; With JT-8280A 5m |
|---|---|
| Life | 100,000 times, 10 years |
| Other | Can be color printed on surface |
Application
Car parking system, high speed ETC, warehouse, logistics, asset management and so on.
| Specifications | |
|---|---|
| Operating Frequency | 860 - 960 MHz |
| Read and write sensitivity | -17dB (more than 10 meters reading distance) |
| Chip | Alien H3 |
| Supported Protocol | ISO 18000-6C, EPC global C1Gen2 |
| Functionality | Read/Write |
| Chip Memory | |
| EPC | 96-EPC Bits (can be extended to 496 bits) |
| User Memory | 512 User Bits Read More |
| Unique Tag Identifier | 64 bits |
|---|---|
| Access password | 32 bits |
| Kill password | 32 bits |
| EEPROM data retention | 10 years |
| EEPROM write endurance | 10,000 cycles |
| Physical Characteristics | |
| Dimensions (W x L x H) | 86 mmx 54 mm x 2 mm |
| Case Material | High Density Poly Carbonate Casing, ceramics, Silver, 3M Tape |
| Color | White |
| Weight | 5g |
| Mount Style | 3M adhesive |
| User Environment | |
| Operating temperature | -40ºC to +85ºC (-40ºF to 185ºF) |
| Applications | License plate, Logistics etc. |
Application
JT-316 is a high performance radio frequency identification (RFID) tag designed specially for mount on vehicle where the management of public vehicle is required. It can be used in license plate, logistics and so on.
| Specifications | |
|---|---|
| Dimension: | 100*62*1MM |
| Chip: | M4 |
| Standard: | ISO18000-6C Class 1 Gen 2 |
| Storage memory: | 64 bytes |
| Working frequency: | 860MHz~960MHz |
| Working mode: | Passive |
| Working life: | Write 100,000 times; Data save 10 years |
| Reading distance: | 15m (12 dBi antenna) Read More |
| Printable: | Customized |
|---|
Application
Vehicle management,Staff management
Introduction

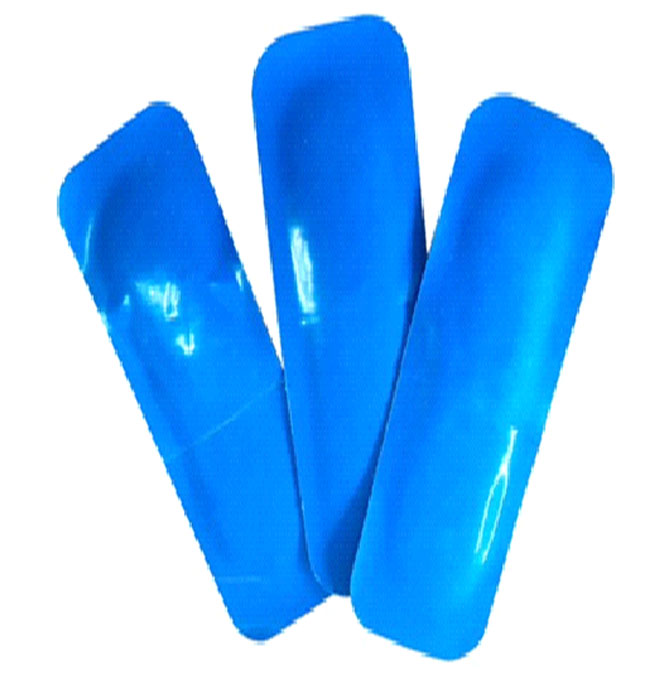

Silicone Laundry RFID Tag is specially designed for laundry industries.
Special design technology entitles it to high bending resistance, waterproof, moisture-proof, high temperature resistance, and easy to use.
It is excellent for sewing, washing and ironing. Customized design for all kind of shapes and patterns.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Standards/Protocols | EPC CLASS1 GEN2, ISO 18000-6C |
| Type | UHF passive RFID tags |
| Physical parameters: | |
| Item size | 56*12*2mm=2.20*0.47*0.08inch(Customized Design) |
| Inlay Material | PET+AL |
| Outer Material | Silicone |
| Memory Size | up to 512bit Read More |
| Chip | Alien Higgs-3/ Alien Higgs-4 |
|---|---|
| Operating Mode | R/W |
| Washable times | Over 200times |
| Working temperature | -20℃~+50℃ |
| Storage temperature | -20℃~+220℃ |
| Reading Distance | 1M(Related to reader performance and working environment) |
Application
1. Laundry management of hotels and laundry industries. Read More
1) Collecting Laundry can be collected quickly; improve the efficiency of the service; make the data more accurate.
2) Taking items--hotel Full automatic warehouse management and search items function greatly improves working efficiency and safety.
3) Stocktaking Full automatic stocktaking function can quickly finding clothes and improve the efficiency of service and quality.
4) Handing over --transit center Full automatic handover job improves working efficiency and make the data more accurate.
5) Handing over-- washing factory Both parties can sure if the delivered goods are same as the goods on the list, while checking the scanning information after scanning the hand over goods.
6) Items inquiries and extract statistics It can provide detailed data, print data queries, and dump to EXECL for staffs and managers.
7) Customer management Scientific and efficient management of customer.
2. Laundry management of hospitals.
1) Do not have to check in person.
2) Check the life cycle, washing times and ways of clothes.
3) Real-time view of clothing information, remote control in types of data.
Introduction
Silicone Laundry RFID Tag is specially designed for laundry industries.
Special design technology entitles it to high bending resistance, waterproof, moisture-proof, high temperature resistance, and easy to use.
It is excellent for sewing, washing and ironing. Customized design for all kind of shapes and patterns.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Standards/Protocols | EPC CLASS1 GEN2, ISO 18000-6C |
| Type | UHF passive RFID tags |
| Physical parameters: | |
| Item size | 75*20*4mm=2.95*0.79*0.16inch(Customized Design) |
| Inlay Material | PET+AL |
| Outer Material | Silicone |
| Memory Size | up to 512bit Read More |
| Chip | Alien Higgs-3/ Alien Higgs-4 |
|---|---|
| Operating Mode | R/W |
| Washable times | Over 200times |
| Working temperature | -20℃~+50℃ |
| Storage temperature | -20℃~+220℃ |

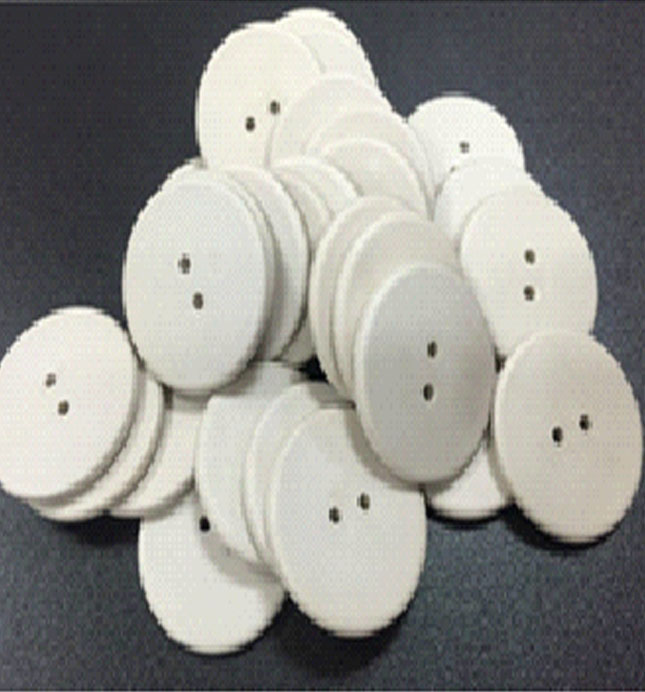

| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Standards/Protocols | EPC CLASS1 GEN2, ISO 18000-6C |
| Type | UHF passive RFID tags |
| Physical parameters: | |
| Item size | 24*1.5mm |
| Material | PPS |
| EPC Memory | 96 bits, max 480 bits |
| User Memory | up to 512bit Read More |
| Printable | Logo accept |
|---|---|
| Life | 100,000 times |
| Working temperature | -20℃~+260℃ |
| Data storage | >10 years |
| Washable time | 300 times |
| Reading Distance | 0~2M(Related to reader performance and working environment) |
Application
Cloth factory, Laundry factory, hotel management, etc.
| Specifications | |
|---|---|
| Working Frequency | 840~960MHz |
| Standards/Protocols | EPC CLASS1 GEN2, ISO 18000-6C |
| Type | UHF passive RFID tags |
| Physical parameters: | |
| Item size | 30*2.5mm(can be customized) |
| Material | PPS |
| EPC Memory | 96 bits, max 480 bits |
| User Memory | up to 512bit Read More |
| Printable | Logo accept |
|---|---|
| Life | 100,000 times |
| Working temperature | -20℃~+260℃ |
| RoHs compliant | Yes |
| Data storage | >10 years |
| Washable time | 300 times |
| Reading Distance | 2~4M(Related to reader performance and working environment) |
Application
Cloth factory, Laundry factory, hotel management,hospital management etc.,
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Standards/Protocols | EPC CLASS1 GEN2, ISO 18000-6C |
| Type | UHF passive RFID tags |
| Chip | Alien/higgs3 |
| Physical parameters: | |
| Item size | 91x33x1mm |
| Material | PPS |
| Storage Memory | 64 bits Read More |
| Life | 100,000 times |
|---|---|
| Data storage | >10 years |
| Reading Distance | 0~5M(Related to reader performance and working environment) |
Application
Garments factory, Laundry factory, hotel management, etc.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 80x70x2mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Operating mode | Passive |
| Material | ABS |
| Life | 100,000 times, 10 years |

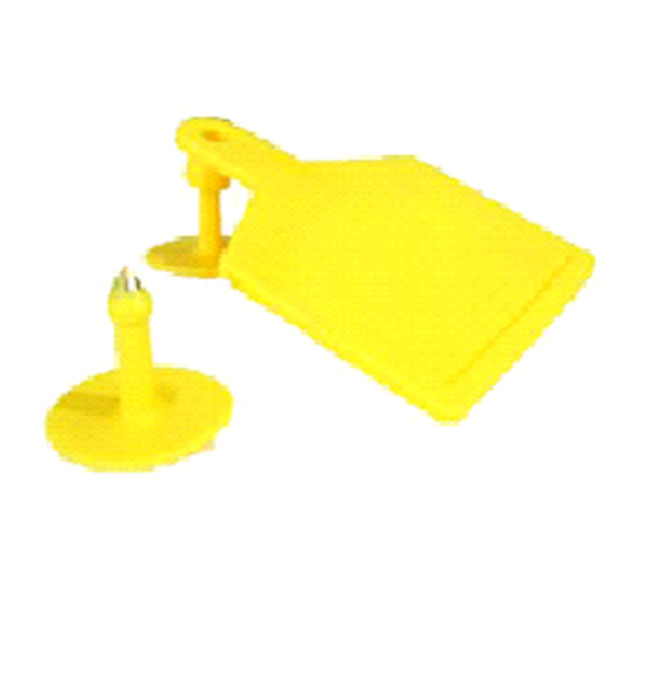

Application
Livestock management; Origin traceability management
Introduction
Compliant with ISO18000-6C EPC G2 protocol, support Dense Reader Mode,can identify and track the animals. Support 96bits EPC code, 64 bits TID code and 512 bits User.
This tags is environmental protection materials, use for animal management.
| Specifications | |
|---|---|
| Dimension | 87x73x3mm |
| Material | TPU |
| Color | Yellow |
| Net weight | 19g/set |
| Quantity | 50pcs/bag |
| Working temperature | -40℃～ +85℃ |
| Storage temperature | -30℃～ +50℃ |
| Working humidity | ≤ 90% Read More |
| Working frequency | 860-960MHz |
|---|---|
| Protocol | EPC Gen2 and ISO18000-6C |
| Reading distance | 0.2m ~5m(depends on the reader) |
| Storage (bits) | 256 bits, 512bits |
| Working mode | Read and write |
| Data recording | 10 years |
| Rewrite time | 100,000 times |
| Multi tag reading | Support |

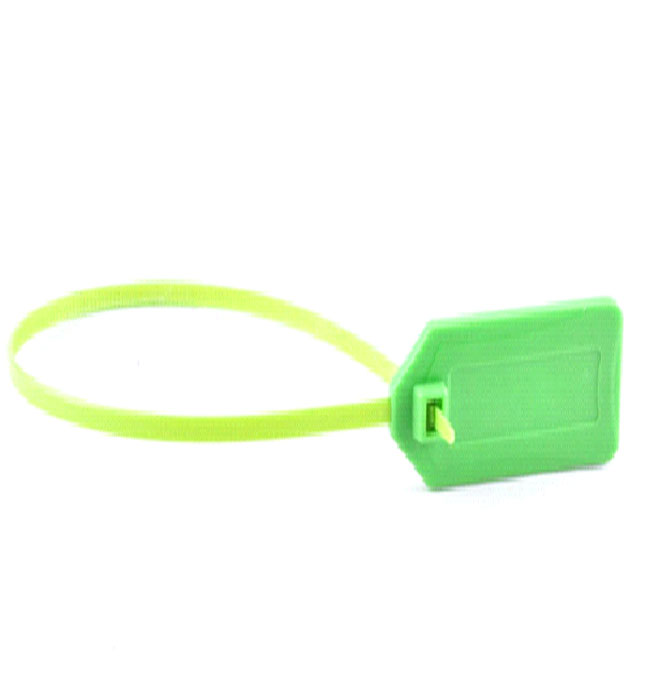

Introduction

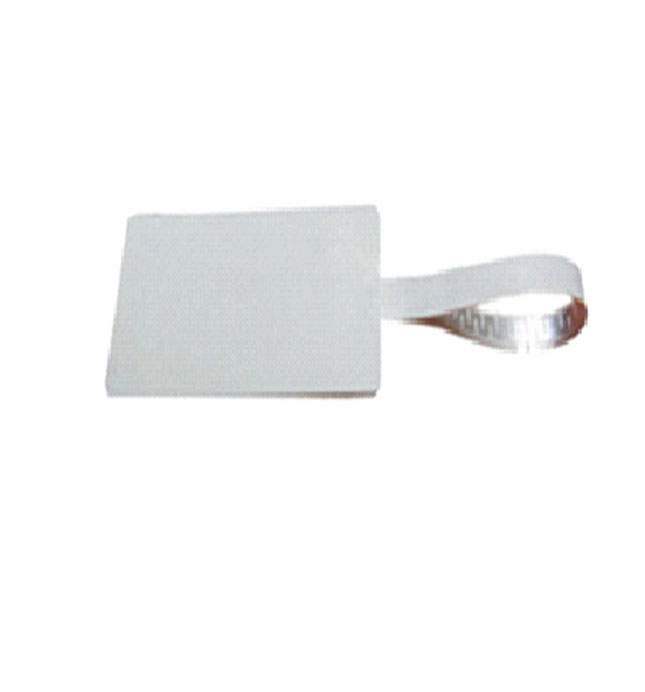

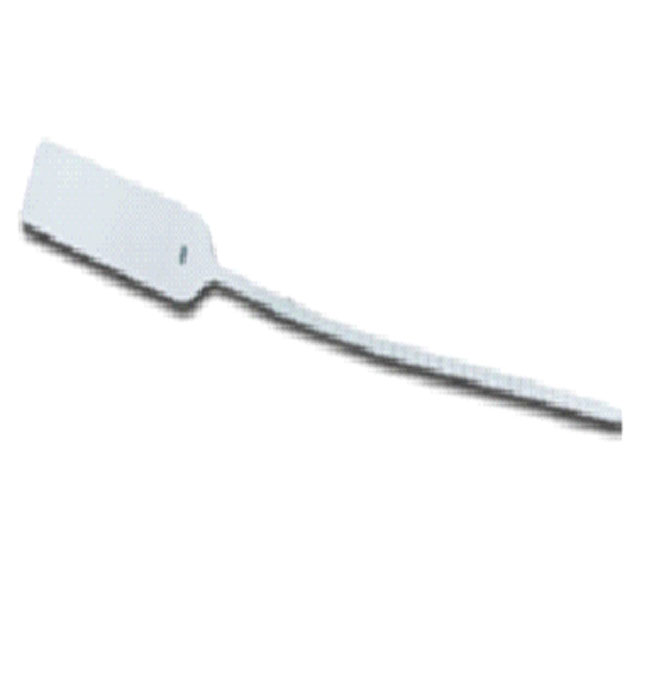

JT-330 is disposable seal label
| Specifications | |
|---|---|
| Working frequency | 860MHz~960MHz |
| Working mode | Passive |
| Standard | ISO18000-6C Class 1 Gen 2 |
| Reading distance | 0~10 M(Related to the chip & antenna) |
| Storage memory(EPC) | 12Bytes |
| Storage memory(User) | 64Bytes |
| Working temperature | -25℃ ~ +65℃ |
| Material | PP Read More |
| Protection Class | IP66 |
|---|---|
| Install type | Tie |
Application
1. Parcel Management; 2. Food tracing management;3. Logistics management;
4. Warehouse management;5. Public utilities management;
Introduction

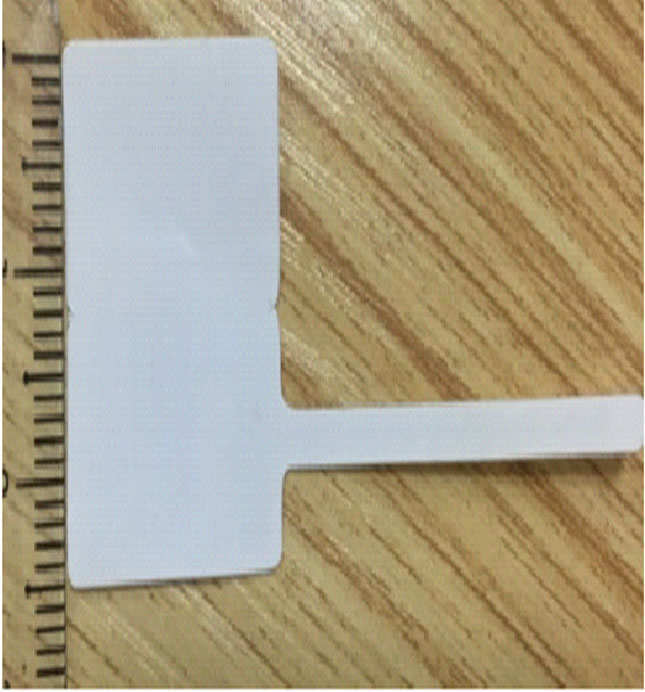

JT-4024 is disposable seal label.
| Specifications | |
|---|---|
| Working frequency | 860MHz~960MHz |
| Working mode | Passive |
| Chip | Alien/higgs3 |
| Standard | ISO18000-6C Class 1 Gen 2 |
| Tag size | 40x24mm |
| Length of steel rope | 30cm |
| Storage memory(EPC) | 64Bytes |
| Storage memory(User) | 64Bytes |
| Install type | Tie |
Application
It is suitable used in large-scale outdoor power equipment inspection, a large tower poles inspection, elevator inspection and medium-sized, large pressure vessels, liquefaction cylinder gasoline bottles, factory equipment management, line inspections, quality control metal bridge, tunnel inspections, machine identification , vehicle license, a metal container management, a variety of electrical home appliances product tracking, etc.
Introduction
It is widely used in Tire factory, automobile factory, vehicle management, etc.
| Specifications | |
|---|---|
| Material | Rubber |
| Dimensions | 95x35x4mm |
| Working temperature | -40°C~230°C |
| Protocol | EPC C1G2 (ISO18000-6C) |
| Frequency | 860~960MHz |
| Chip | Alien Higgs-3 |
| EPC memory | 96 bits, max 480 bits |
| User memory | 512 bits Read More |
| Read range | 1-2m(depend on the reader power) |
|---|---|
| ROHS compliant | Yes |
| Data storage | >10 years |
| Re-write | 100,000 times |
| Fixture | Embedded |
Introduction
It is widely used in Tire factory, automobile factory, vehicle management, etc.
| Specifications | |
|---|---|
| Material | Rubber |
| Dimensions | 85*38*2mm |
| Working temperature | -40°C~230°C |
| Protocol | EPC C1G2 (ISO18000-6C) |
| Frequency | 860~960MHz |
| Chip | Alien Higgs-3 |
| EPC memory | 96 bits, max 480 bits |
| User memory | 512 bits Read More |
| Read range | 1-2m(depend on the reader power) |
|---|---|
| ROHS compliant | Yes |
| Data storage | >10 years |
| Re-write | 100,000 times |
| Fixture | Embedded |

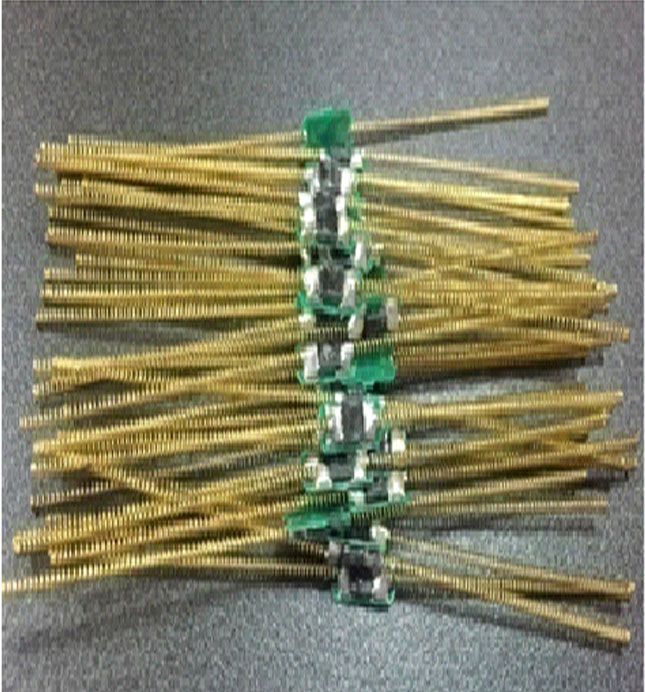

Introduction
It is widely used in Tire factory, automobile factory, vehicle management, etc.
| Specifications | |
|---|---|
| Material | Spring |
| Dimensions | 90x1mm |
| Working temperature | -40°C~230°C |
| Protocol | EPC C1G2 (ISO18000-6C) |
| Frequency | 860~960MHz |
| Chip | Alien Higgs-3 |
| EPC memory | 96 bits, max 480 bits |
| User memory | 512 bits Read More |
| Read range | 0.5~1.5m(depend on the reader power) |
|---|---|
| ROHS compliant | Yes |
| Data storage | >10 years |
| Re-write | 100,000 times |
| Fixture | Embedded |
Introduction
Samll size, waterproof, anti-acid, anti-alkali, anti-collision; very good reading range(1meter) install on cylindrical metal object
| Specifications | |
|---|---|
| Working Frequency | 920~925MHz |
| Chip | IMPINJ M4 |
| Material | PCB |
| Dimension | 10x3.5x1mm |
| Reading range | 15cm(Handheld reader with 3dBi antenna),>50cm(Fixed RFID reader with 8dBi antenna) |
| Printable | Customized |
| Color | Black(Black Soldermask) Read More |
| Working temperature | -20℃~+75℃ |
|---|---|
| Storage temperature | -40℃~+120℃ |
Introduction
Samll size, waterproof, anti-acid, anti-alkali, anti-collision; very good reading range(1meter) install on cylindrical metal object
| Specifications | |
|---|---|
| Working Frequency | 920~925MHz |
| Chip | IMPINJ M4 |
| Material | PCB |
| Dimension | 10x2mm |
| Reading range | 70cm(Handheld reader with 3dBi antenna),>150cm(Fixed RFID reader with 8dBi antenna) |
| Printable | Customized |
| Color | Black(Black Soldermask) Read More |
| Working temperature | -20℃~+150℃ |
|---|---|
| Storage temperature | -40℃~+150℃ |
Feature
Small Size, long reading range, for both metal and non-metallic surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 13x9x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 1~1.5m(fixed reader),0.5~1m(handheld reader) |
| Working temperature | -40℃ ~ 180℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 4g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small Size, long reading range, for both metal and non-metallic surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 18x9x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 1m(fixed reader),0.3m(handheld reader) |
| Working temperature | -40℃ ~ 180℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 3g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small size, long reading range,High temperature resistant for 230Celsius, for both harsh environment and PH environment.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 21x17x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/ AlienH3/NXP G2XM |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 3~4m(fixed reader),1~2m(handheld reader) |
| Working temperature | -40℃ ~ 230℃ |
| Material | Rare earth ceramics + Acid and alkali resistant shell Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 5.1g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management.
Feature
Small Size, long reading range, for harsh environment.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 21x17x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/ AlienH3/NXP G2XM |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 3~4m(fixed reader),1~2m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 4g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small Size, long reading range.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 22x9x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 1~2m(fixed reader),0.5~1m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 4g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small Size, long reading range, for both metal and non-metallic surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 25x9x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 3~4m(fixed reader),1~2m(handheld reader) |
| Working temperature | -40℃ ~ 180℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 9g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small Size, long reading range, for both metal and non-metallic surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 25x25x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 4~6m(fixed reader),2~3m(handheld reader) |
| Working temperature | -40℃ ~ 180℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 16g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small Size, long reading range, for metal surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 36x13x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT |
| Storage Capacity | EPC 128 bits, User memory 496bits |
| Reading range | 3m(fixed reader),1~2m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 6g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management.
Feature
Small Size, long reading range.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 53x13x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 3~4m(fixed reader),1~2m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 10g/pcs |
| Protection class | IP68 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Flexible, anti-metal, smalll and thin,Self-adhesive,cost-effective
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 60x14x1.5mm |
| Storage (bits) | 96 bits, 512bits |
| Substrate material | As the use of plastic carrier Tag |
| Protective materials | using PET / PVC tag as a protective layer |
| Installation | 3M adhesive |
| Quantity | 2g |
| Working temperature | -40℃～ +80℃ Read More |
| Reading distance | 2m(fixed reader),1m(handheld reader) |
|---|---|
| Protection class | IP54 |
| RosH | Yes |
| Logo print | Customized |
Feature
Flexible,thin
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Dimension | 112x 24 x1.5mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 2m(fixed reader),1m(handheld reader) |
| Working temperature | -40℃ ~ 80℃ |
| Substrate material | As the use of plastic carrier Tag Read More |
| Protective materials | using PET / PVC tag as a protective layer |
|---|---|
| Installation | adhesive |
| Life | 100,000 times, 10 years |
| Net weight | 7g/pcs |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in indoor metal equipment and having an uneven surface of the metal device management
Feature
Long reading range, for metal surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 60x25x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 4~6m(fixed reader),2~3m(handheld reader) |
| Working temperature | -40℃ ~ 80℃ |
| Material | PCB Read More |
| Installation | adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 12g/pcs |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 66x4x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 1m(fixed reader),0.5m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | PCB Read More |
| Installation | adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 5g/pcs |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Long reading range, for metal surface.
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 70x20x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 4~6m(fixed reader),2~3m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | PCB Read More |
| Installation | adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 12g/pcs |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Long reading range, for metal surface.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHZ |
| Dimension | 80x10x3.3mm |
| Protocol | EPC GEN2 ISO 18000-6C |
| Chip | Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 3m(fixed reader),1m(handheld reader) |
| Working temperature | -30℃ ~ 160℃ |
| Material | PCB Read More |
| Installation | adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Long reading range, for metal surface.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHZ |
| Dimension | 80x15x3.3mm |
| Protocol | EPC GEN2 ISO 18000-6C |
| Chip | Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 3m(fixed reader),1m(handheld reader) |
| Working temperature | -30℃ ~ 160℃ |
| Material | PCB Read More |
| Installation | adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Long reading range, for metal surface.

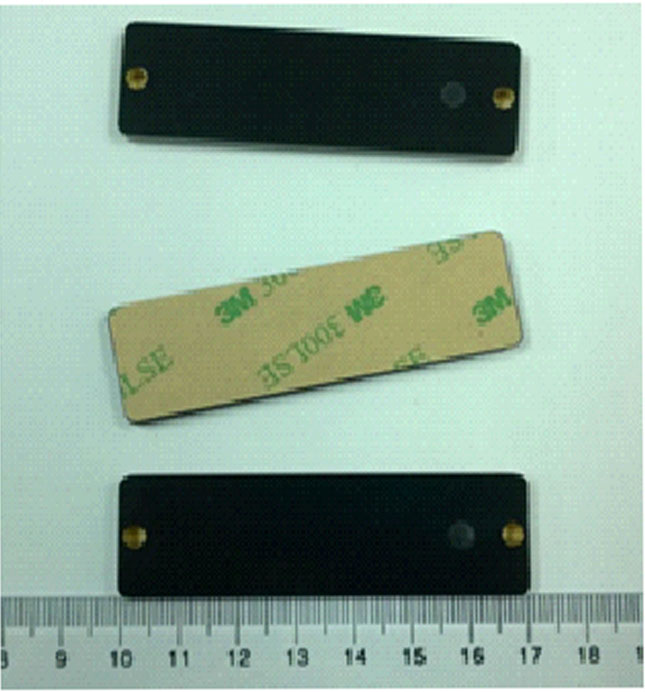

| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 80x20x3mm |
| Protocol | EPC GEN2 ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 4~6m(fixed reader),2~3m(handheld reader) |
| Working temperature | -40℃ ~ 140℃ |
| Material | PCB Read More |
| Installation | adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 17g/pcs |
| Protection class | IP54 |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
JT-8654 pallet labels RFID anti-metal tag / asset management tag, with high temperature industrial ABS plastic / metal shielding materials / epoxy potting, and ultrasonic welding, quality performance
| Specifications | |
|---|---|
| Working Frequency | 860-960MHZ |
| Dimension | 85x54x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 4~6m(fixed reader),2~3m(handheld reader) |
| Working temperature | -40℃ ~ 80℃ |
| Material | ABS Read More |
| Installation | Screw hole |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 16g/pcs |
| Protection class | IP65 |
Application
It is widely used in large-scale outdoor power equipment Read More
inspection, large tower poles inspection, inspection and medium-sized elevators, pallet management, large pressure vessels, liquefaction cylinder gasoline bottles, factory equipment management, line inspections, quality control metal bridge, tunnel inspections, machine identification, vehicle license, metal container management , a variety of electrical home appliances product tracking, etc.

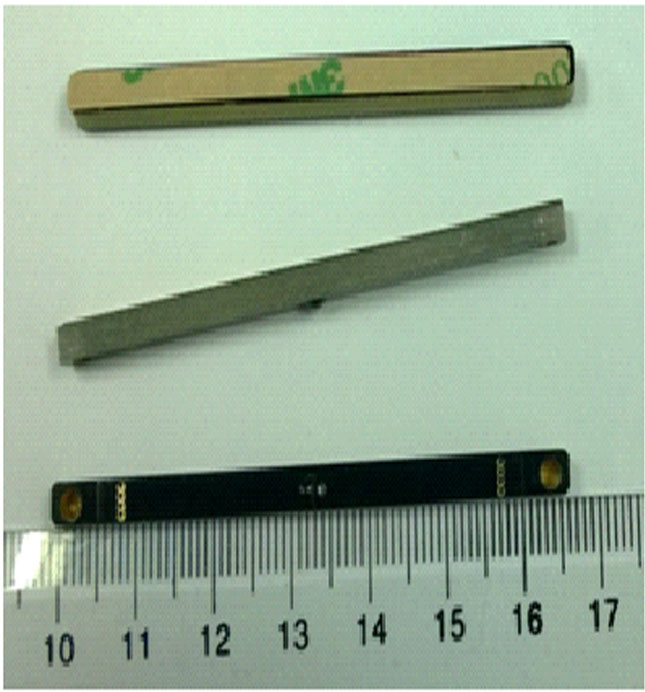

| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 90x11x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | 3m(fixed reader),1~2m(handheld reader) |
| Working temperature | -40℃ ~ 80℃ |
| Material | PCB Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 10g/pcs |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
| Specifications | |
|---|---|
| Working Frequency | 902-928MHZ |
| Dimension | 94x28x4.8mm |
| Protocol | ISO 18000-6C |
| Chip | Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading distance | >=5m |
| Working temperature | -25℃ ~ 85℃ |
| Packing | Anti-electrostatic packaging Read More |
| Installation | Screws, rivets,double-sided tape, glue, cable tie, hanging |
|---|---|
| Life | 100,000 times, 10 years |
| Laser printed | Customized |
| Surface paint | Customized |
| Adhesive | Customized |
| PCB surface silk screen | Customized |
Application
Warehouse and shelf management, landmark management, IT asset management, indoor facilities and asset management, smart grid identification, bank asset management, telecommunications asset management, equipment management, container management
| Specifications | |
|---|---|
| Working Frequency | 902-928MHz |
| Dimension | 95x25x3mm |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Working temperature | -25℃ ~ 160℃ |
| Material | PCB |
| Life | 100,000 times, 10 years Read More |
| Protection class | IP68 |
|---|---|
| Logo print | Customized |
Application
Livestock management; Origin traceability management
| Specifications | |
|---|---|
| Working Frequency | 902-928MHz |
| Dimension | 13x9x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 1m(fixed reader),0.5m(handheld reader) |
| Working temperature | -40℃ ~ 180℃ |
| Material | Ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 3g/pcs |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Small Size, long reading range, for both metal and non-metallic surface
| Specifications | |
|---|---|
| Working Frequency | 860-960MHZ |
| Dimension | 30x30x3mm |
| Protocol | Impinj M4QT |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Reading range | 6~8m(fixed reader),2~3m(handheld reader) |
| Working temperature | -40℃ ~ 180℃ |
| Material | Rare earth ceramics Read More |
| Installation | 3M adhesive |
|---|---|
| Life | 100,000 times, 10 years |
| Net weight | 9.1g/pcs |
| Logo print | Customized |
Application
It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management
Feature
Long reading range, high sensitivity, anti-metal, anti-acid, for both metal and non-metallic surface.
| Specifications | |
|---|---|
| Working Frequency | 860~960 MHz |
| Dimension | 16x12x3mm |
| Protocol | ISO 18000-6C |
| Chip | Impinj M4QT/Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits,TID 64 bits, |
| Working temperature | -40℃ ~ 230℃ |
| Material | Ceramics |
| Installation | 3M adhesive Read More |
| Life | 100,000 times, 10 years |
|---|---|
| Net weight | 5g/pcs |
| Color | White |
| Protection class | IP54 |
Application
It is widely used in metal environment,metal equipment asset management, gun control, medical equipment management, logistics management.
Feature
Long reading range, high sensitivity, magnetic, anti-metal, anti-acid, for both metal and non-metallic surface.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Operating mode | Passive |
| Storage Capacity | 64 bytes |
| Dimension | (L) 100*(W)30*(H)3.7mm |
| Operating temperature | -40℃ ~ 180℃ Read More |
| Life | 100,000 times, 10 years |
|---|---|
| Installation | Magnetic |
| Waterproof | IP68 |
| Color | Black |
| Net weight | 30g |
| Material | FR4+PSR4000 solder mask |
| Logo print | Customized |
Application
It is widely used in metal environment,Steel Management,metal equipment asset management, gun control, medical equipment management, logistics management.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Protocol | ISO 18000-6C(GEN 2) |
| Chip | Alien Higgs3 |
| Storage Capacity | EPC 96 bits, User memory 512bits |
| Operating mode | Passive |
| Storage Capacity | 64 bytes |
| Dimension | (L) 100*(W)30*(H)3.7mm |
| Operating temperature | -40℃ ~ 180℃ Read More |
| Life | 100,000 times, 10 years |
|---|---|
| Installation | 3M adhesive |
| Waterproof | IP65 |
| Color | Dark grey |
| Net weight | 30g |
| Material | ABS |
| Logo print | Customized |
Application
Intelligent traffic such as ETC, Parking lot, automatic weighting Read More
Logistics such as container management, pallet management, asset management
Customs border-crossing
Ticketing& access control
Pharmaceuticals such as medical waste management
Feature
Management of jewelry Read More
1. Anti-theft and anti-counterfeit
Jewelry has the only ID, and the information of the jewelry certificate can be recorded on the tag, such as Weight, purity, grade, warehouse, cargo area and shelves.
2. Quick inventory User feedback : After using the RFID Jewelry management system, the inventory time from 4 days reduced to 0.5 days for 6000 jewelries.
3. Security It makes the data of jewelry inventory more accurate, reduces the rate of jewelry loss.
4. Automatic sale management
Automatically identify the number of shelves jewelry with excellent performance, reflect sales in real time.
Facilitate management planning, data mining and decision support.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Protocol | EPC CLASS1 GEN2, ISO 18000-6C |
| Chip | Alien Higgs-3/ Alien Higgs-4 |
| Size | 40*30mm=1.57*1.18inch(Customized Design) |
| Inlay Material | PET+AL |
| Outer Material | Copper paper /PET |
| Memory Size | Up to 512bit |
| Operating Mode | R/W Read More |
| Reading Distance | 1M(Related to reader performance and working environment) |
|---|---|
| Operating Temp | -20℃~+50℃ |
| Storage Temp | -40℃~+100℃ |
Feature
Management of jewelry Read More
1. Anti-theft and anti-counterfeit
Jewelry has the only ID, and the information of the jewelry certificate can be recorded on the tag, such as Weight, purity, grade, warehouse, cargo area and shelves.
2. Quick inventory User feedback : After using the RFID Jewelry management system, the inventory time from 4 days reduced to 0.5 days for 6000 jewelries.
3. Security It makes the data of jewelry inventory more accurate, reduces the rate of jewelry loss.
4. Automatic sale management
Automatically identify the number of shelves jewelry with excellent performance, reflect sales in real time.
Facilitate management planning, data mining and decision support.
| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Protocol | EPC CLASS1 GEN2, ISO 18000-6C |
| Chip | MonzaR6 |
| Size | 71mmx36mmx0.3mm(±0.05mm) |
| Weight | 0.50±0.03g |
| Reading Distance | 1M(Related to reader performance and working environment) |
| EPC | 96bit |
| Serial Number | 48bit(one and only) Read More |
| Data storage | 50years(chip only) |
|---|---|
| Life | 100000 |
| Operating environment | Humidity 30 % - 65 % |
| Operating Temp | -20℃~+75℃ |
| Storage Temp | -10℃~+40℃ |
| Adhesive | 20N / in(Clean surface,excludsive surface laminating) |
| Package | 2000pcs/Roll |
Feature
RFID tag is necessary part in intelligent sports competition, for example marathon.Read More
Before start competition, fix the tag on the shoes. Then when running go through the antenna, the reader can get the information from the tag, such as name, team number etc. whit time of the instant.
| Specifications | |
|---|---|
| Working Frequency | 860-960MHZ |
| Standard | EPC GEN2 18000-6C |
| Size | 180*25*0.3mm |
| Outer material | Synthetic Paper |
| INLAY | Alien H3, 9654 |
| INLAY Material | PET+AL |
| Chip | H3 or Impinj |
| User memory | 512bit Read More |
| Operation model | Read/write |
|---|---|
| Reading distance | Around 3meter( related with the reader and surroundings) |
| Life | 100,000Times |
| Operating Temp | -20℃~50℃ |
| Storage Temp | -40℃~80℃ |

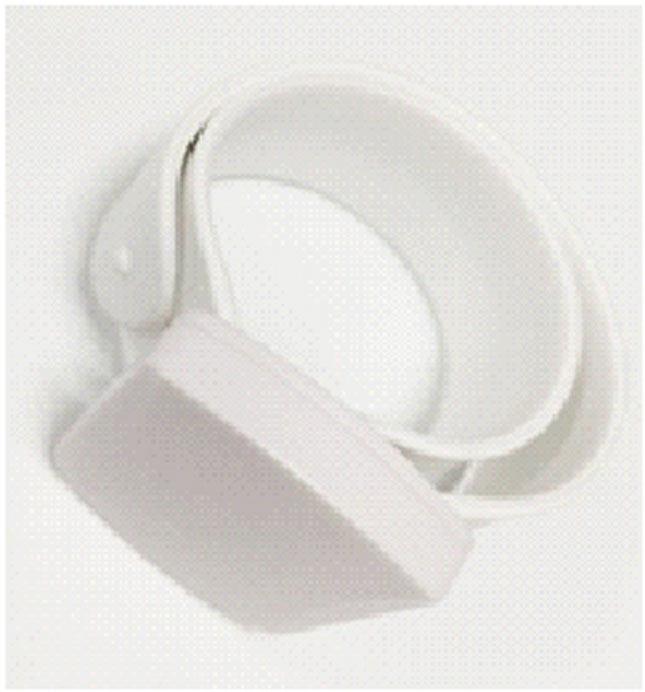

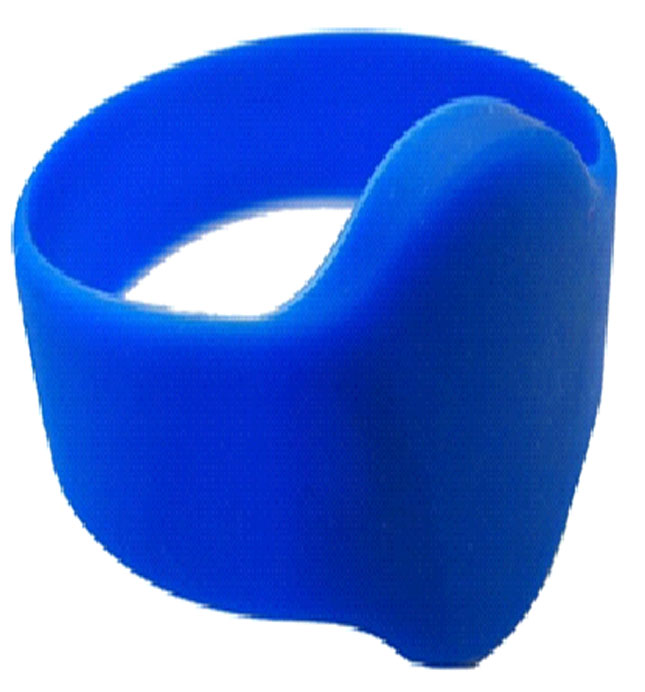

| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Type | UHF passive RFID tags |
| Width of the wristband | 16mm |
| Wrist dial | 32mm |
| Thickness | dial 7mm, band 1.5mm |
| Material | Silicone |
| Diameter | 45mm, 50mm, 60mm, 65mm, 74mm (mostly used 65,74mm) |
| Colors | Blue, Red, Black, White, Yellow, Grey, Green, Pink etc. Read More |
| Reading/Writing Distance | 20CM-10M (UHF) (Relative with different reader.) |
|---|---|
| Working temperature | -50 ~ 240℃ |
Application
Widely used in Resorts, Events, Schools, Hospitals, Amusement park, Public bus systems, Cinemas, Musical festivals, Concerts, Sauna centers or any other access control
Feature

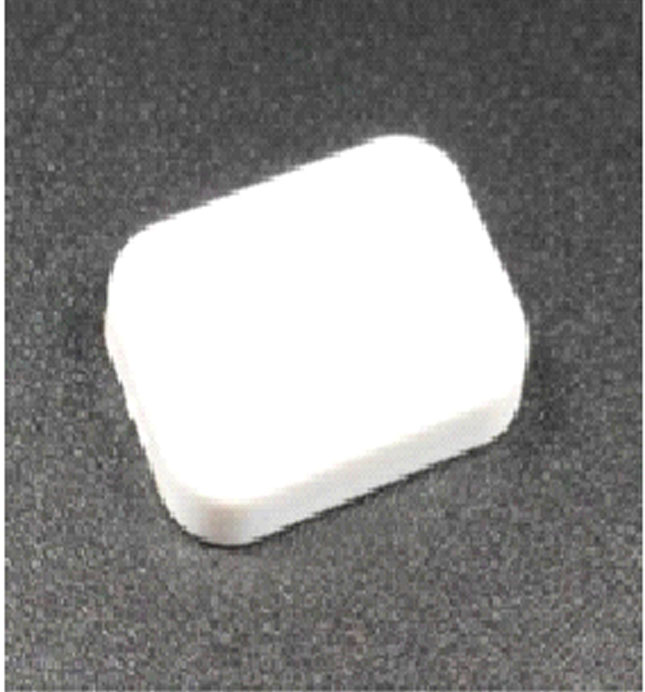

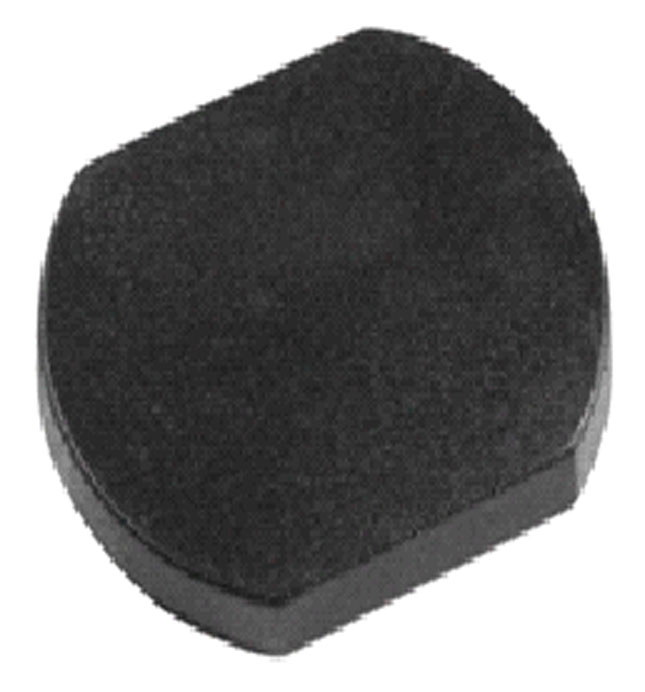

This kind of ceramic tag solve the problem of the weakness of other wristband tag, it can overcome the effect of human body. Read More
1. Ceramic material;
2. Anti-corrosion, waterproof, can be used in bad industrial environment;
3. Special designed appearance;
4. High performance , durable, long-lasting, and IP67

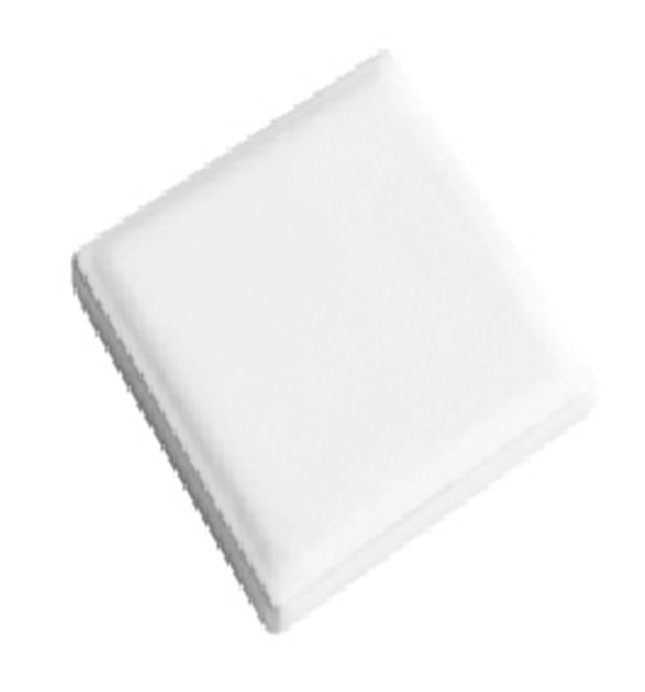

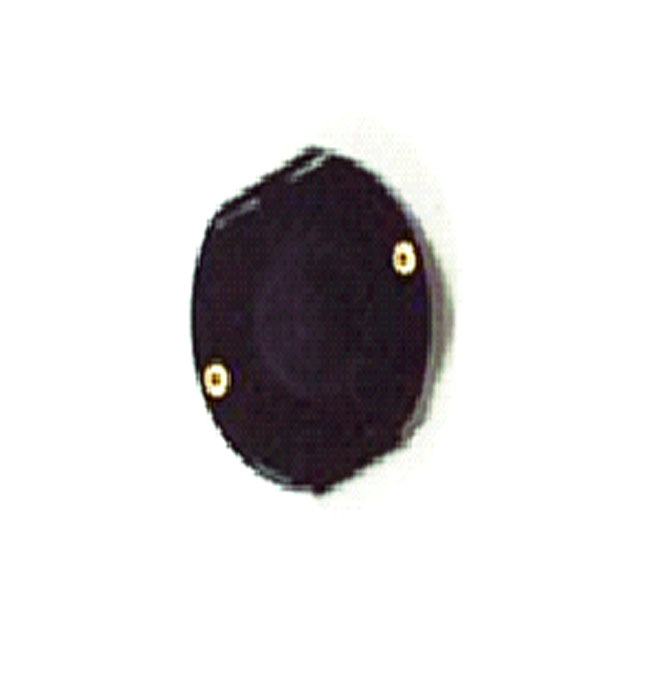

| Specifications | |
|---|---|
| Working Frequency | 860~960MHz |
| Antenna gain | 3dBi circular polarization |
| Protocol | ISO18000-6C(EPC C1 GEN2) |
| Chip | Alien |
| Function | Reading and writing |
| Reading range | stable reading range 0~6 m(with 12 dBi reader) |
| Chip parameters | |
| EPC | 96bits-EPC Read More |
| Storage | 512 user bits |
|---|---|
| TID | 64 bits |
| Access password | 32 bits |
| Kill password | 32 bits |
| Anti-interference | strong |
| Data Storage time | 10 years |
| Erasable number | 10000times |
| Physical parameters | |
| Material | ceramic |
| Working temperature | -40℃~+230℃ |
| Application | RFID Personnel management |
| Item size | 35x31x13mm |
| Net weight | 12g |
| Shell material | ABS |
Application
Widely used in Resorts, Events, Schools, Hospitals, Amusement park, Public bus systems, Cinemas, Musical festivals, Concerts, Sauna centers or any other access control
